[ OCR ] 파이썬 Tesseract OCR 활용 (심화2) - Python

그림, 표, 바코드 등을 포함한 복잡한 구조의 이미지인 경우에서는 OCR 결과가 좋지 않습니다. 원하는 영역만 추출하여 OCR을 수행하면 좋을 것 같은데..

하지만 이미지에서 내가 원하는 영역을 정확하게 파악하고 출력하는 것은 쉬운 일이 아닙니다.

다양한 이미지에서 원하는 영역만 추출하여 OCR을 수행하거나 OCR결과에서 원하는 값을 찾는 방법에 대해 소개합니다.

Import Packages

from imutils.perspective import four_point_transform
from imutils.contours import sort_contours
import matplotlib.pyplot as plt
import pytesseract
import imutils
import cv2
import re
import requests
import numpy as np

Jupyter Notebook 또는 Colab에서 이미지를 확인하기위한 Function

def plt_imshow(title='image', img=None, figsize=(8 ,5)):
    plt.figure(figsize=figsize)

    if type(img) == list:
        if type(title) == list:
            titles = title
        else:
            titles = []

            for i in range(len(img)):
                titles.append(title)

        for i in range(len(img)):
            if len(img[i].shape) <= 2:
                rgbImg = cv2.cvtColor(img[i], cv2.COLOR_GRAY2RGB)
            else:
                rgbImg = cv2.cvtColor(img[i], cv2.COLOR_BGR2RGB)

            plt.subplot(1, len(img), i + 1), plt.imshow(rgbImg)
            plt.title(titles[i])
            plt.xticks([]), plt.yticks([])

        plt.show()
    else:
        if len(img.shape) < 3:
            rgbImg = cv2.cvtColor(img, cv2.COLOR_GRAY2RGB)
        else:
            rgbImg = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)

        plt.imshow(rgbImg)
        plt.title(title)
        plt.xticks([]), plt.yticks([])
        plt.show()

Load Image

url = 'https://user-images.githubusercontent.com/69428232/148330274-237d9b23-4a79-4416-8ef1-bb7b2b52edc4.jpg'

image_nparray = np.asarray(bytearray(requests.get(url).content), dtype=np.uint8)
org_image = cv2.imdecode(image_nparray, cv2.IMREAD_COLOR)

plt_imshow("orignal image", org_image)

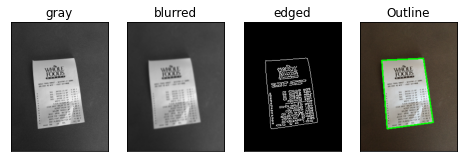

이전 글에서 설명한 Scan 이미지로 변환하는 방법을 Function으로 만들어 사용하도록 하겠습니다.

def make_scan_image(image, width, ksize=(5,5), min_threshold=75, max_threshold=200):
  image_list_title = []
  image_list = []

  org_image = image.copy()
  image = imutils.resize(image, width=width)
  ratio = org_image.shape[1] / float(image.shape[1])

  # 이미지를 grayscale로 변환하고 blur를 적용
  # 모서리를 찾기위한 이미지 연산
  gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)
  blurred = cv2.GaussianBlur(gray, ksize, 0)
  edged = cv2.Canny(blurred, min_threshold, max_threshold)

  image_list_title = ['gray', 'blurred', 'edged']
  image_list = [gray, blurred, edged]

  # contours를 찾아 크기순으로 정렬
  cnts = cv2.findContours(edged.copy(), cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)
  cnts = imutils.grab_contours(cnts)
  cnts = sorted(cnts, key=cv2.contourArea, reverse=True)

  findCnt = None

  # 정렬된 contours를 반복문으로 수행하며 4개의 꼭지점을 갖는 도형을 검출
  for c in cnts:
    peri = cv2.arcLength(c, True)
    approx = cv2.approxPolyDP(c, 0.02 * peri, True)

    # contours가 크기순으로 정렬되어 있기때문에 제일 첫번째 사각형을 영역으로 판단하고 break
    if len(approx) == 4:
      findCnt = approx
      break

  # 만약 추출한 윤곽이 없을 경우 오류
  if findCnt is None:
    raise Exception(("Could not find outline."))

  output = image.copy()
  cv2.drawContours(output, [findCnt], -1, (0, 255, 0), 2)

  image_list_title.append("Outline")
  image_list.append(output)

  # 원본 이미지에 찾은 윤곽을 기준으로 이미지를 보정
  transform_image = four_point_transform(org_image, findCnt.reshape(4, 2) * ratio)

  plt_imshow(image_list_title, image_list)

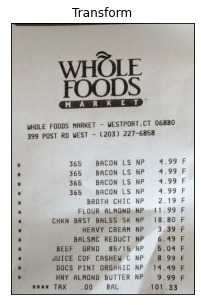

  plt_imshow("Transform", transform_image)

  return transform_image

receipt_image = make_scan_image(org_image, width=200, ksize=(5, 5), min_threshold=20, max_threshold=100)

수정된 이미지를 OCR로 수행하면 아래와 같은 결과가 나옵니다.

options = "--psm 4"
text = pytesseract.image_to_string(cv2.cvtColor(receipt, cv2.COLOR_BGR2RGB), config=options)

# OCR결과 출력
print("[INFO] OCR결과:")
print("==================")
print(text)
print("\n")

이미지 처리 기술과 OpenCV 라이브러리를 사용하여 입력 이미지에서 원하는 텍스트를 추출 하는 방법

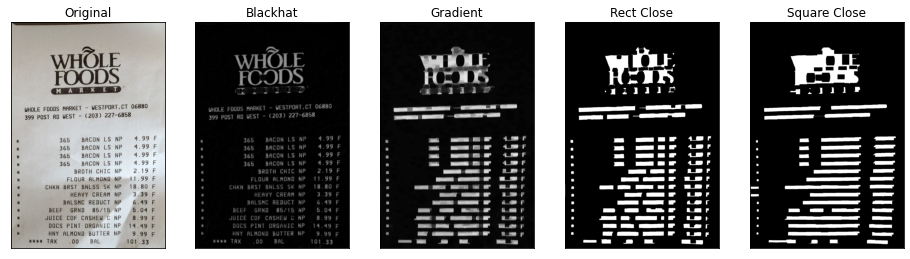

1. 이미지 연산을 통한 영역 추출

gray = cv2.cvtColor(receipt, cv2.COLOR_BGR2GRAY)
(H, W) = gray.shape

rectKernel = cv2.getStructuringElement(cv2.MORPH_RECT, (30, 20))
sqKernel = cv2.getStructuringElement(cv2.MORPH_RECT, (50, 21))

gray = cv2.GaussianBlur(gray, (11, 11), 0)
blackhat = cv2.morphologyEx(gray, cv2.MORPH_BLACKHAT, rectKernel)

grad = cv2.Sobel(blackhat, ddepth=cv2.CV_32F, dx=1, dy=0, ksize=-1)
grad = np.absolute(grad)
(minVal, maxVal) = (np.min(grad), np.max(grad))
grad = (grad - minVal) / (maxVal - minVal)
grad = (grad * 255).astype("uint8")

grad = cv2.morphologyEx(grad, cv2.MORPH_CLOSE, rectKernel)
thresh = cv2.threshold(grad, 0, 255, cv2.THRESH_BINARY | cv2.THRESH_OTSU)[1]

close_thresh = cv2.morphologyEx(thresh, cv2.MORPH_CLOSE, sqKernel)
close_thresh = cv2.erode(close_thresh, None, iterations=2)

plt_imshow(["Original", "Blackhat", "Gradient", "Rect Close", "Square Close"], [receipt, blackhat, grad, thresh, close_thresh], figsize=(16, 10))

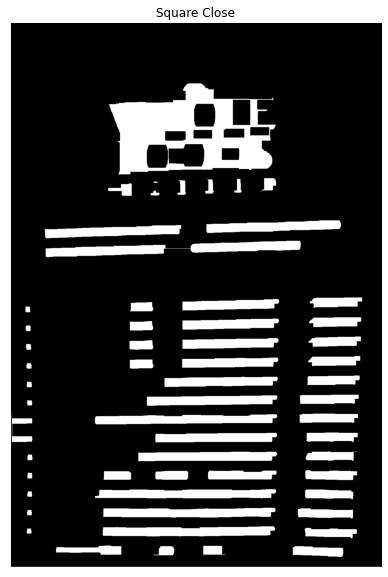

Grouping된 이미지를 좀 더 크게 보면 아래와 같습니다.

plt_imshow(["Square Close"], [close_thresh], figsize=(16, 10))

Detection

Grouping 된 영역의 윤곽선을 찾고 그 윤곽선이 특정 조건 (Ex. 종횡비 등)에 만족하는 영역만 추출합니다.

cnts = cv2.findContours(close_thresh.copy(), cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)
cnts = imutils.grab_contours(cnts)
cnts = sort_contours(cnts, method="top-to-bottom")[0]

roi_list = []
roi_title_list = []

margin = 20
receipt_grouping = receipt.copy()

for c in cnts:
  (x, y, w, h) = cv2.boundingRect(c)
  ar = w // float(h)

  if ar > 3.0 and ar < 6.5 and (W/2) < x:
    color = (0, 255, 0)
    roi = receipt[y - margin:y + h + margin, x - margin:x + w + margin]
    roi_list.append(roi)
    roi_title_list.append("Roi_{}".format(len(roi_list)))
  else:
    color = (0, 0, 255)

  cv2.rectangle(receipt_grouping, (x - margin, y - margin), (x + w + margin, y + h + margin), color, 2)
  cv2.putText(receipt_grouping, "".join(str(ar)), (x, y - 15), cv2.FONT_HERSHEY_SIMPLEX, 0.65, color, 2)

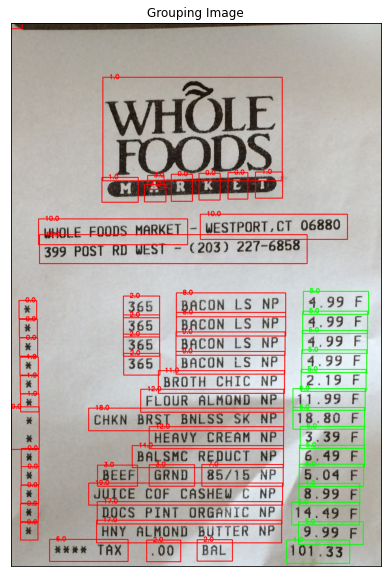

  plt_imshow(["Grouping Image"], [receipt_grouping], figsize=(16, 10))

Recognition

찾은 영역을 아래와 같습니다. 각 이미지를 OCR 수행합니다.

plt_imshow(roi_title_list, roi_list, figsize=(16, 10))

for roi in roi_list:
  gray_roi= cv2.cvtColor(roi, cv2.COLOR_BGR2GRAY)
  threshold_roi = cv2.threshold(gray_roi, 0, 255, cv2.THRESH_BINARY | cv2.THRESH_OTSU)[1]
  roi_text = pytesseract.image_to_string(threshold_roi)
  print(roi_text)

Merge Image

추출된 이미지만큼 OCR을 수행하면 성능이 많이 느리기때문에 이미지를 Merge하여 OCR되는 횟수를 최소화합니다.

def mergeResize(img, row=300, col=200):
    IMG_COL = col #66

    # row값에 따른 col값 변경
    IMG_COL = int((row * IMG_COL)/row)

    IMG_ROW = row
    border_v = 0
    border_h = 0

    if (IMG_COL / IMG_ROW) >= (img.shape[0] / img.shape[1]):
        border_v = int((((IMG_COL / IMG_ROW) * img.shape[1]) - img.shape[0]) / 2)
    else:
        border_h = int((((IMG_ROW / IMG_COL) * img.shape[0]) - img.shape[1]) / 2)
    img = cv2.copyMakeBorder(img, top=border_v, bottom=border_v, left=0, right=border_h + border_h, borderType=cv2.BORDER_CONSTANT, value=(255, 255, 255))
    img = cv2.resize(img, (IMG_ROW, IMG_COL))
    return img

for idx, roi in enumerate(roi_list):
  if idx == 0:
    mergeImg = mergeResize(roi)
  else:
    cropImg = mergeResize(roi)
    mergeImg = np.concatenate((mergeImg, cropImg), axis=0)

threshold_mergeImg = cv2.threshold(mergeImg, 150, 255, cv2.THRESH_BINARY)[1]
plt_imshow(["Merge Image"], [threshold_mergeImg])
merge_Img_text = pytesseract.image_to_string(threshold_mergeImg)
print(merge_Img_text)

2. 정규식을 통한 영역 추출

phoneNums = re.findall(r'[\+\(]?[1-9][0-9 .\-\(\)]{8,}[0-9]', text)
phoneNums

가격만 추출

prices = re.findall(r"(?:NP )([0-9\.\-+_]+\.[0-9\.\-+_]+)", text)
prices

합산 가격만 추출

total_price = re.findall(r"(?:BAL )([0-9\.\-+_]+\.[0-9\.\-+_]+)", text)
total_price

정규식은 명함과 같은 이미지 OCR에 활용하면 좋을 것 같습니다.

url = 'https://user-images.githubusercontent.com/69428232/155486780-55525c3c-8f5f-4313-8590-dd69d4ce4111.jpg'

image_nparray = np.asarray(bytearray(requests.get(url).content), dtype=np.uint8)
org_image = cv2.imdecode(image_nparray, cv2.IMREAD_COLOR)

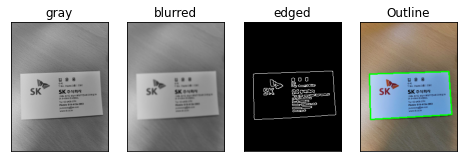

business_card_image = make_scan_image(org_image, width=200, ksize=(5, 5), min_threshold=20, max_threshold=100)

options = "--psm 4"
text = pytesseract.image_to_string(business_card_image, config=options, lang='kor+eng')

# OCR결과 출력
print("[INFO] OCR결과:")
print("==================")
print(text)
print("\n")

tel = re.findall(r'(?:Tel )([\+\(]?[0-9][0-9 .\-\(\)]{8,}[0-9])', text)[0]
mobile = re.findall(r'(?:Mobile )([\+\(]?[0-9][0-9 .\-\(\)]{8,}[0-9])', text)[0]
emails = re.findall(r"[a-z0-9\.\-+_]+@[a-z0-9\.\-+_]+\.[a-z]+", text)[0]
addr = re.findall(r"[0-9\.\-+_]+\,.*", text)[0]

print("유선전화 : {}".format(tel))
print("휴대전화 : {}".format(mobile))
print("이메일 : {}".format(emails))
print("주소 : {}".format(addr))

Source Code

[ Colab ] - Detection OCR
